Jolly Roger Class
O 7
Boats in this Class
O 7

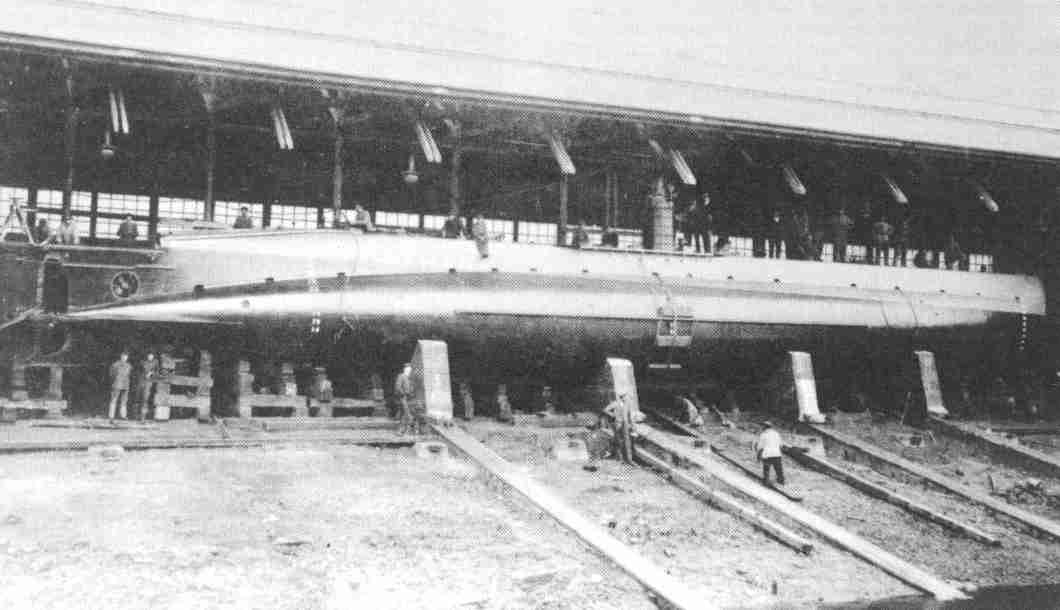

O 7 under construction. Note the steering propeller. Rotterdam, July 1916 O 7 under construction. Note the steering propeller. Rotterdam, July 1916



Boat O 7
Yard # 265
Type Patrol submarine for the Dutch home waters
Class name O 7. Named after first of class. "O" stands for
"Onderzeeboot" (submarine)
Ordered 8 May 1913
Laid down 12 May 1914
Launched 22 July 1916
Commissioned 23 Dec 1916
Decommissioned 21 Nov 1939
Fate 1944 Sunk.
19?? Raised and scrapped
Design William Denny & Brothers, Dumbarton, U.K.
Shipyard Maatschappij Fijenoord, Rotterdam, the Netherlands
Le x Be x Dr 34.24 m x 3.9 m x 2.88 m
Displacement
Stnd/Surf/Subm
168 t / 178.6 t / 209.266 t
Engine One 6-cylinder M.A.N. diesel engine, 2-stroke, 350 apk
Main motor 210 apk, some source report 185 shp.
Batteries 60 cells, 4610 Ah during 3 hours
Shafts 1, plus steering propeller.
Speed surf/subm 11.5 kts / 8.5 kts
Range surf/subm 750 nm at 10 kts / 42 nm at 7 kts
Fuel 6.548 t
Diving depth 40 m
Complement 15
Torpedo tubes 2 x 18" bow, 1 x 18" stern
Armament 5 torpedoes type I 45 and II 45
Guns 1 machine gun
Periscopes 2 Zeiss
Notes Single-hull type. The O 7 and O 6 (O 6 class) are often
regarded as sister ships.
An unusual feature is the steering propeller, situated just
ahead of the main propulsion propeller and rudder.













Do you have any comments, corrections, additions or do you have material like stories, photos or other data available for this or any other page on this website? Then please do not hesitate to contact us at webmaster@dutchsubmarines.com
